Nanoleaf 4D Screen Mirror + Lightstrip Kit (65")

Nanoleaf 4D Screen Mirror + Lightstrip Kit (65")

$169.00 SGD
$169.00 SGD
Sale Sold out
Tax included.

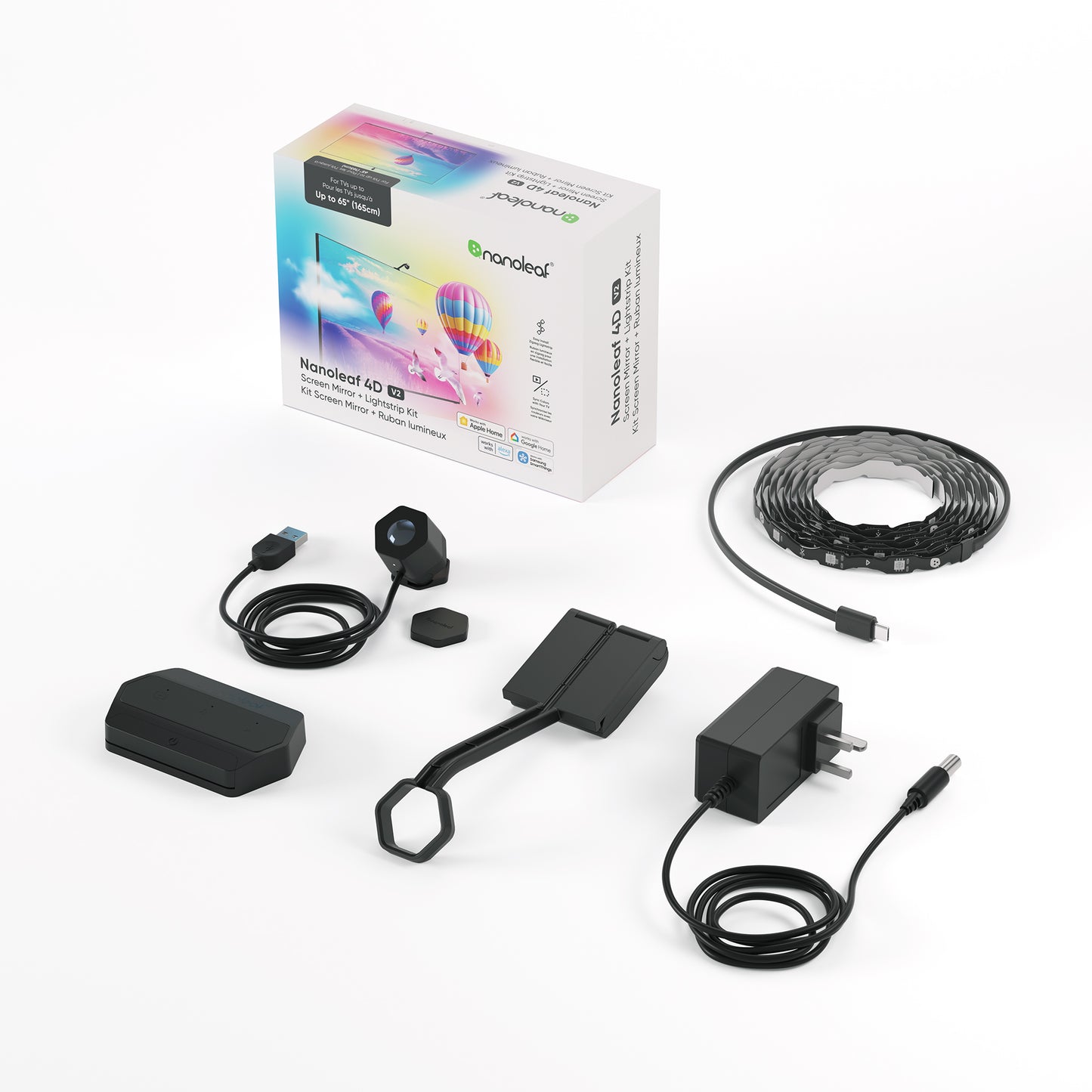

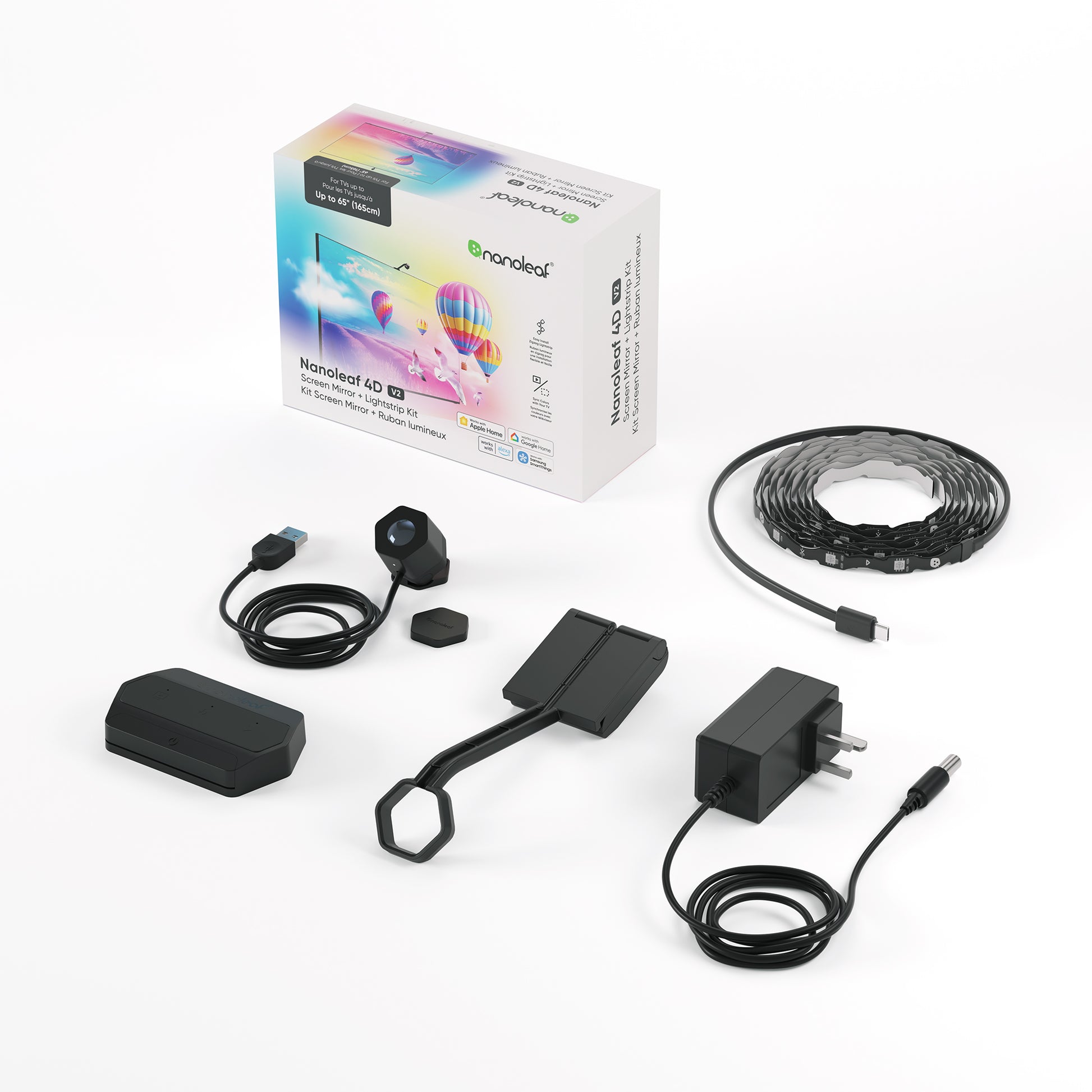

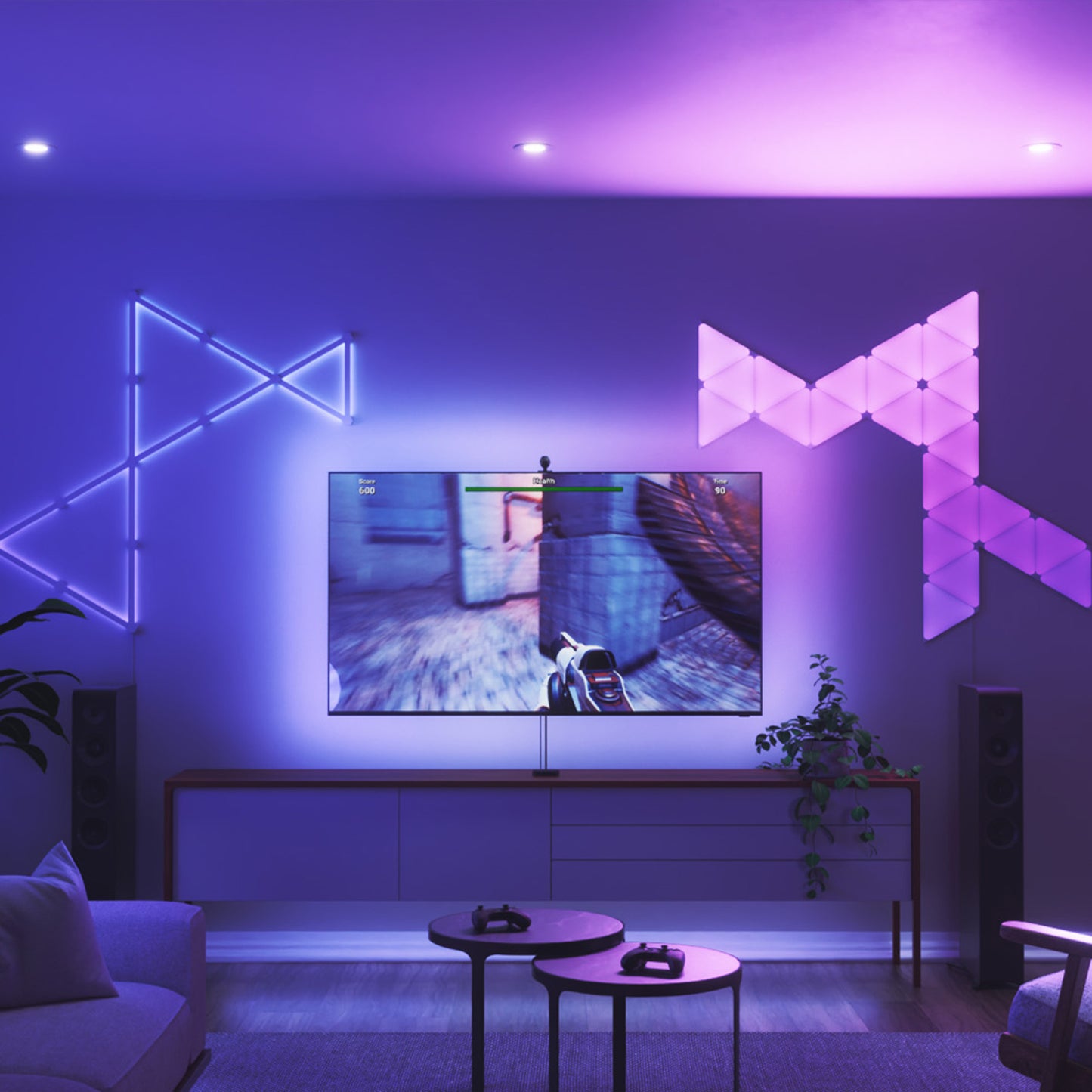

Take your entertainment beyond the screen. Nanoleaf 4D is a screen mirror camera kit that syncs the colours on your screen onto the addressable gradient LED lightstrip mounted behind it — now available in Singapore!

Experience the ultra-immersive ″4D″ effect as the vibrant backlighting illuminates your space with the colours from your favourite shows, movies, and video games.

For a levelled-up entertainment experience, enable ″Sync+″ in the Nanoleaf App to extend the screen sync effects across 50+ Nanoleaf RGB lights—like Nanoleaf Shapes and Lines.

Compliant to Singapore IMDA standards, with SAFETY mark certification.

Fit for TV and monitors up to 65".

  • Ultra Vivid Screen Mirroring

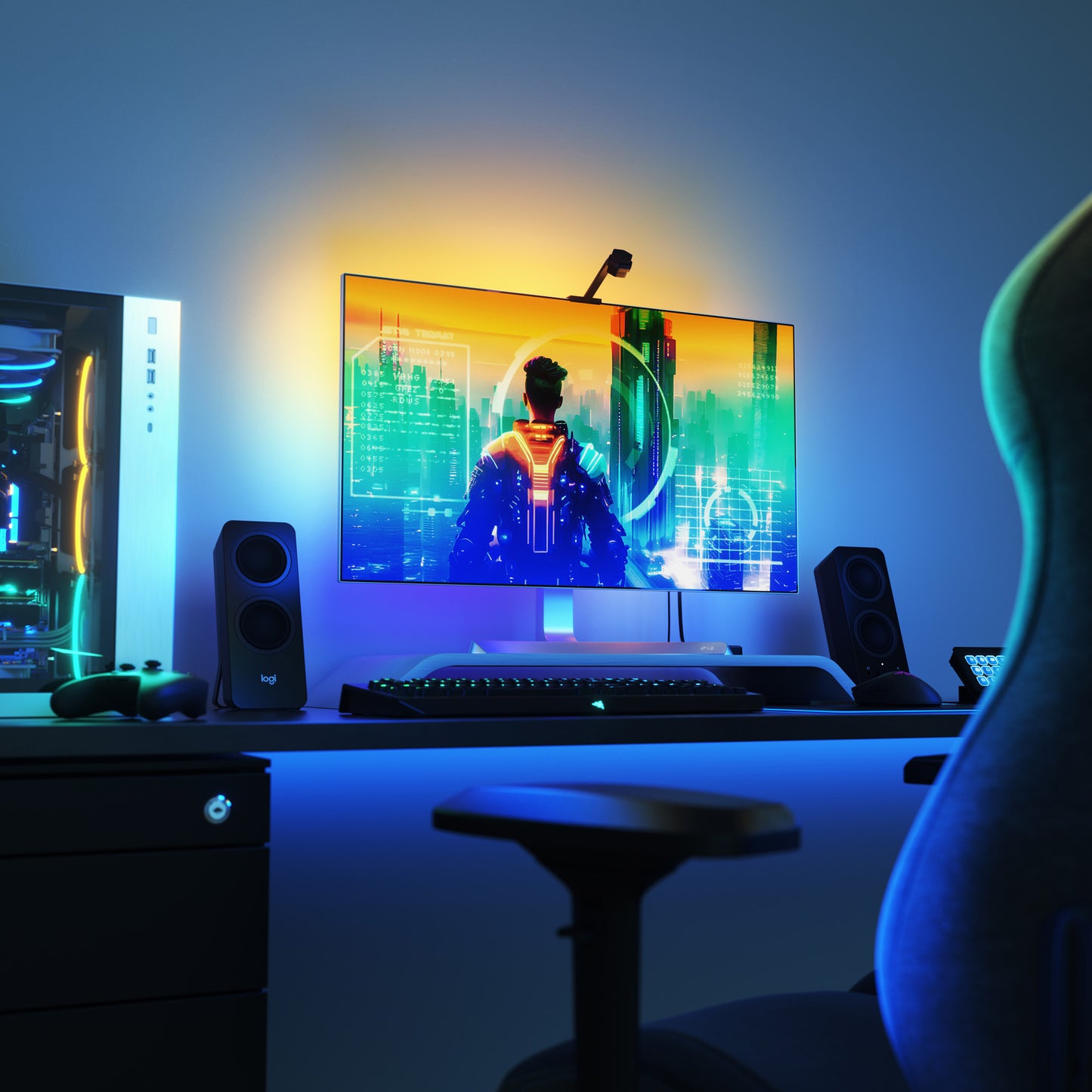

  • Versatile positioning: mount on monitor or place on table

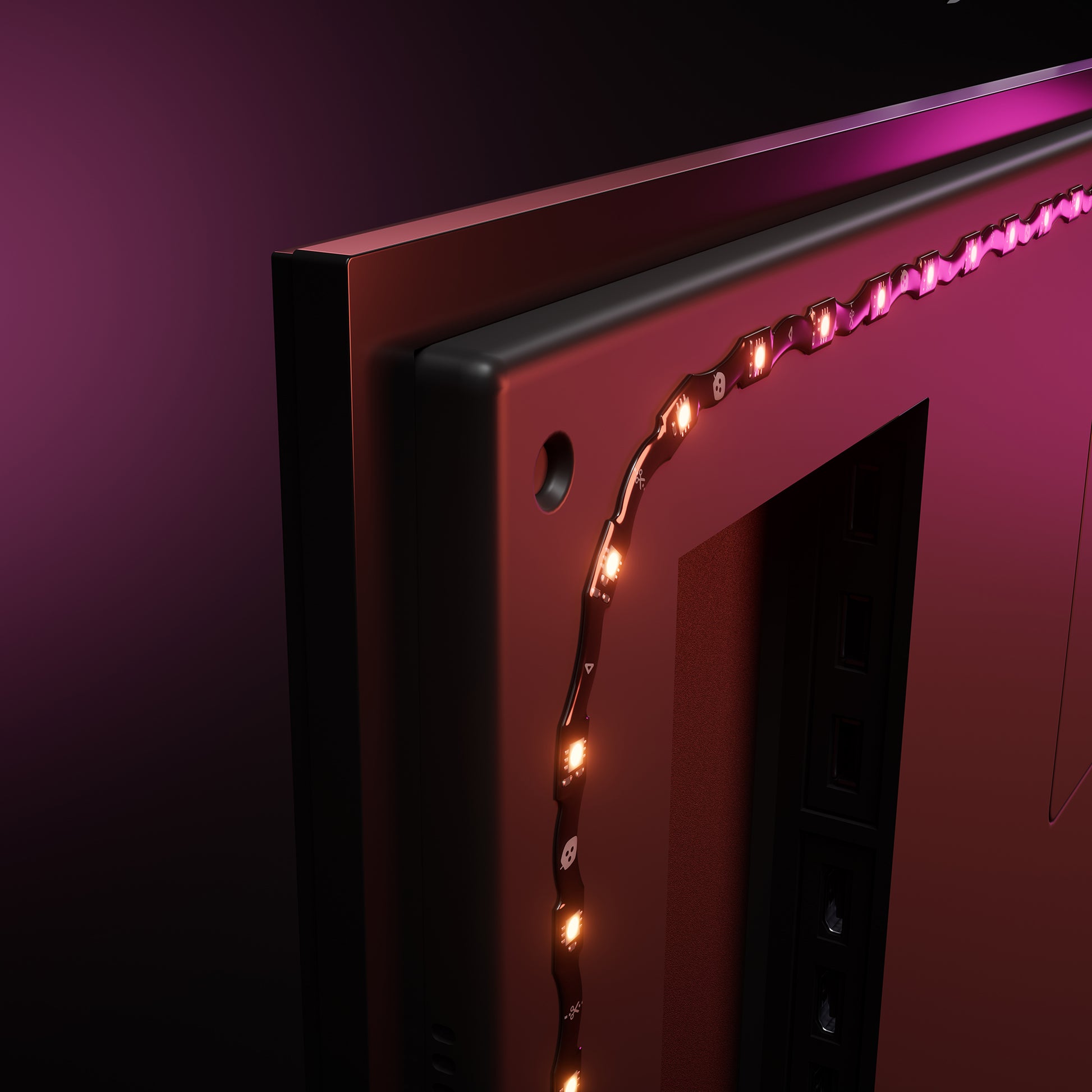

  • Trimmable Lightstrip
  • Privacy Cover for Camera
  • Use with TV Screens or Monitors
  • 100% Authentic
  • 2-Year Local Warranty
  • Fast Shipping from Singapore

DIMENSIONS & WEIGHT

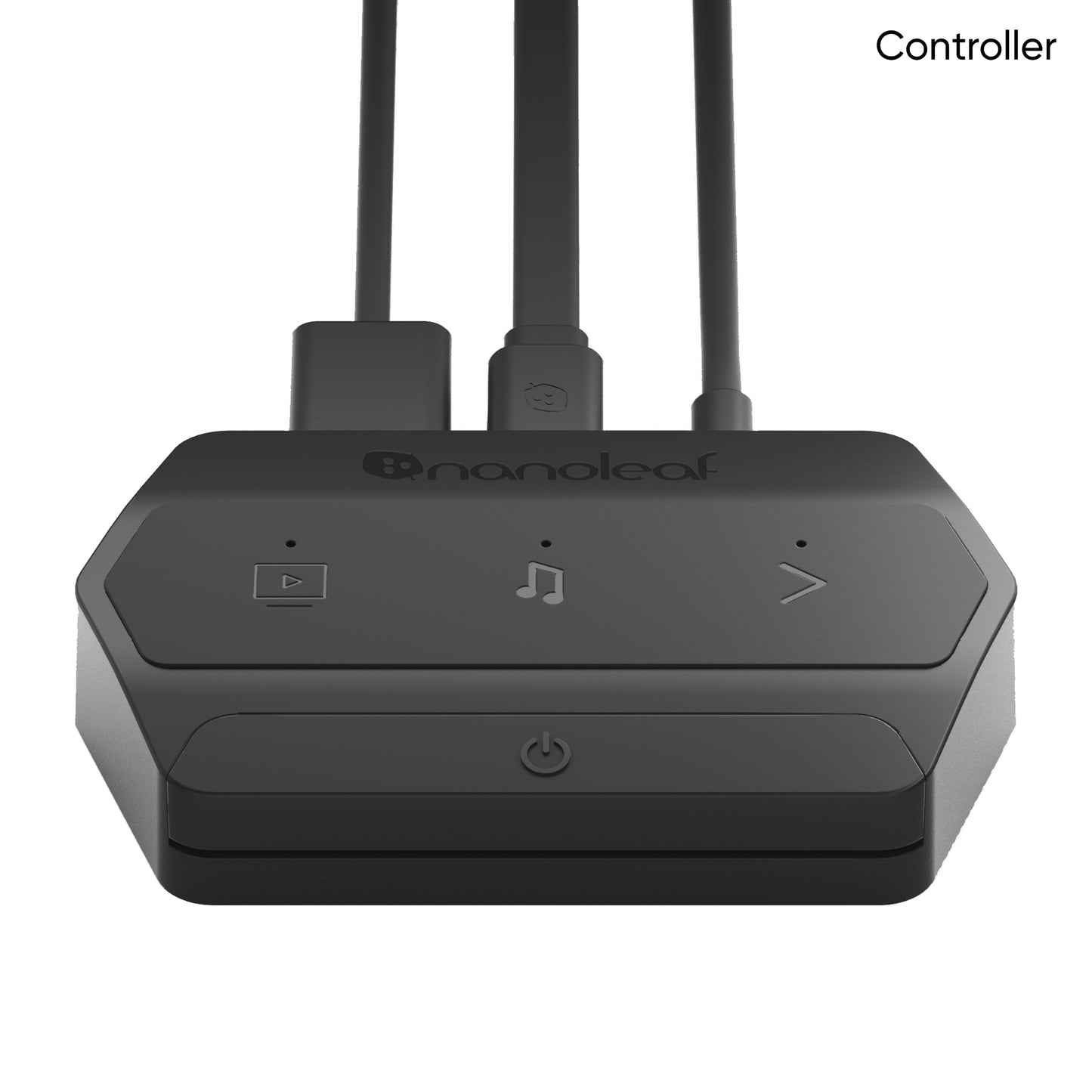

Controller: 93.3 x 57.1mm x 17mm | 66g
Lightstrip: up to 65" | 50g
Camera: 31 x 28 34mm | 60g
Mount: 181.2 x 56.3 x 50mm
Corner Brackets: 148.5 x 18 x 17.9mm
Camera Cap: 29.9 x 27 x 4.6mm
Cable Length: Camera 1.5m | Lightstrip 1m | PSU 2m

FEATURES

Luminous Flux: 275lm
Lifetime: 25,000 hours
Communication Protocol: WiFi (2.4 GHz b/g/n)
NOTE: 5GHz networks are not compatible with Nanoleaf products.
Dimmability: Yes (via Nanoleaf App, Voice, Controller)
Mounting Type Camera: Tape at the bottom of the camera OR via TV mount
Mounting Type Controller: Tape at the bottom of the controller
Mounting Type Lightstrip: Tape at the back of the Lightstrip
Nanoleaf App: Control via the Nanoleaf App (Android & iOS) for mobile/tablet or the Nanoleaf Desktop App (Windows & Mac).
Compatibility: Apple Home, Amazon Alexa, Google Home, IFTTT, SmartThings, Razer Chroma
Usage: Indoor
IP Rating: IP20

COLOURS

Colour Channel Configuration: RGBIC
Resolution: 30 LEDs per metre
Max Colours: More than 16 million
Colour Zones: 10 zones per metre

POWER

Input Voltage: 200V-240V
PSU Output Voltage: 12V2A
Max Power Supply Power: 24W
Max Energy Consumption Per metre of LS: 7.2W

View full details

Key Features

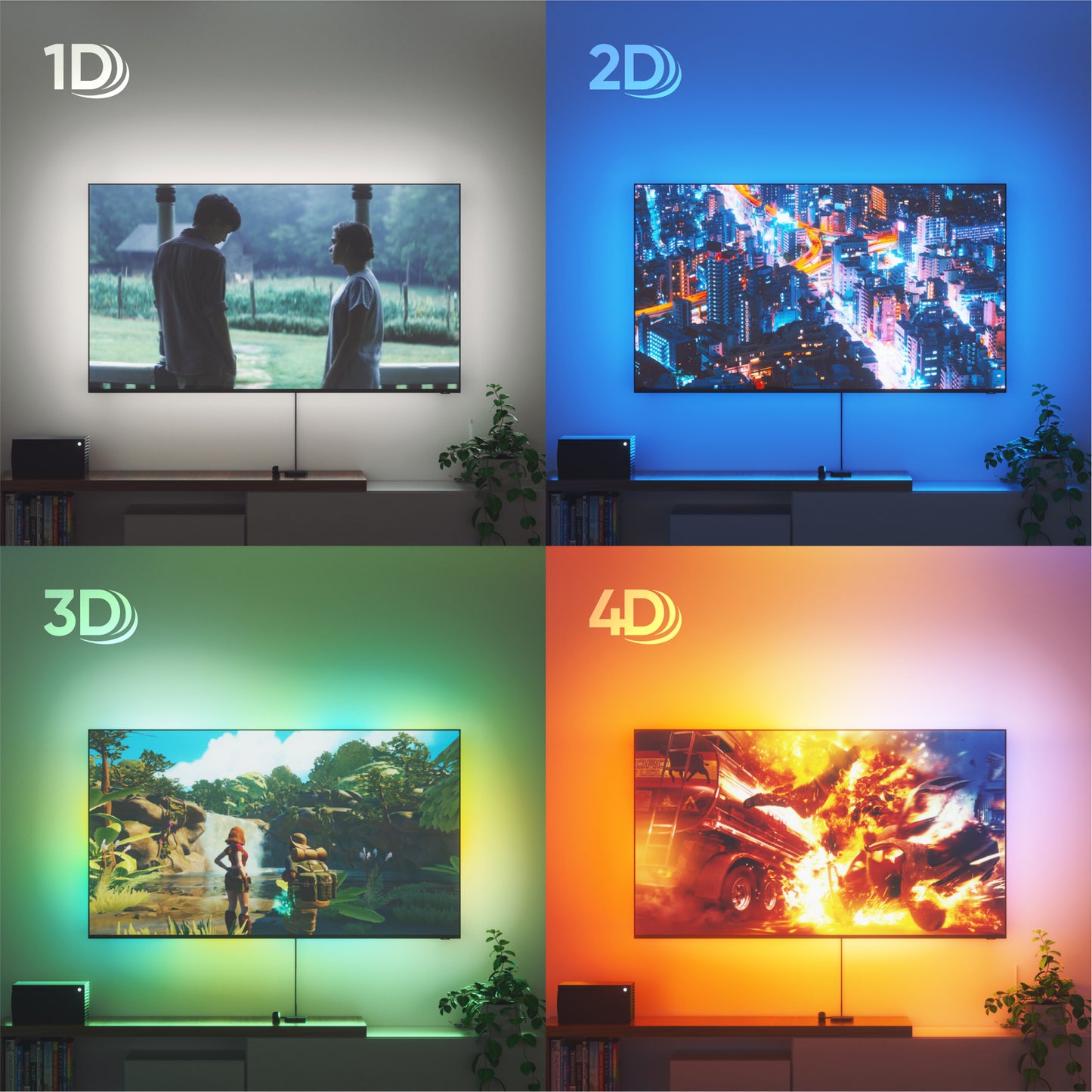

4 Mirror Modes

Choose from 4 Screen Mirror modes with varying degrees of immersion to best suit what you're watching—from ambient background lighting, to fluid colour melts, and finally a direct "4D" match for the highest impact.

Add Rhythm sound reactivity to any screen mirror mode to bring your favourite music videos and soundtracks to life!

With Sync+, extend the 4D to multiple Nanoleaf RGB lighting devices.

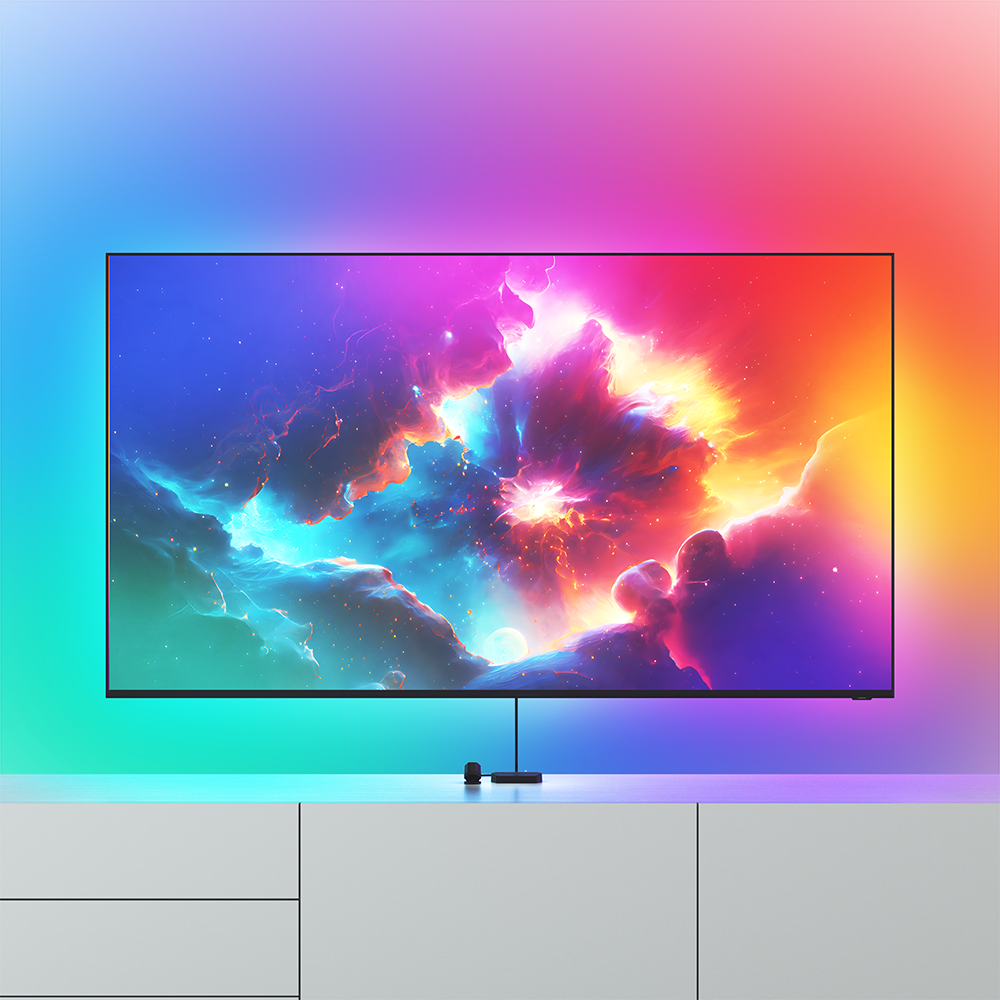

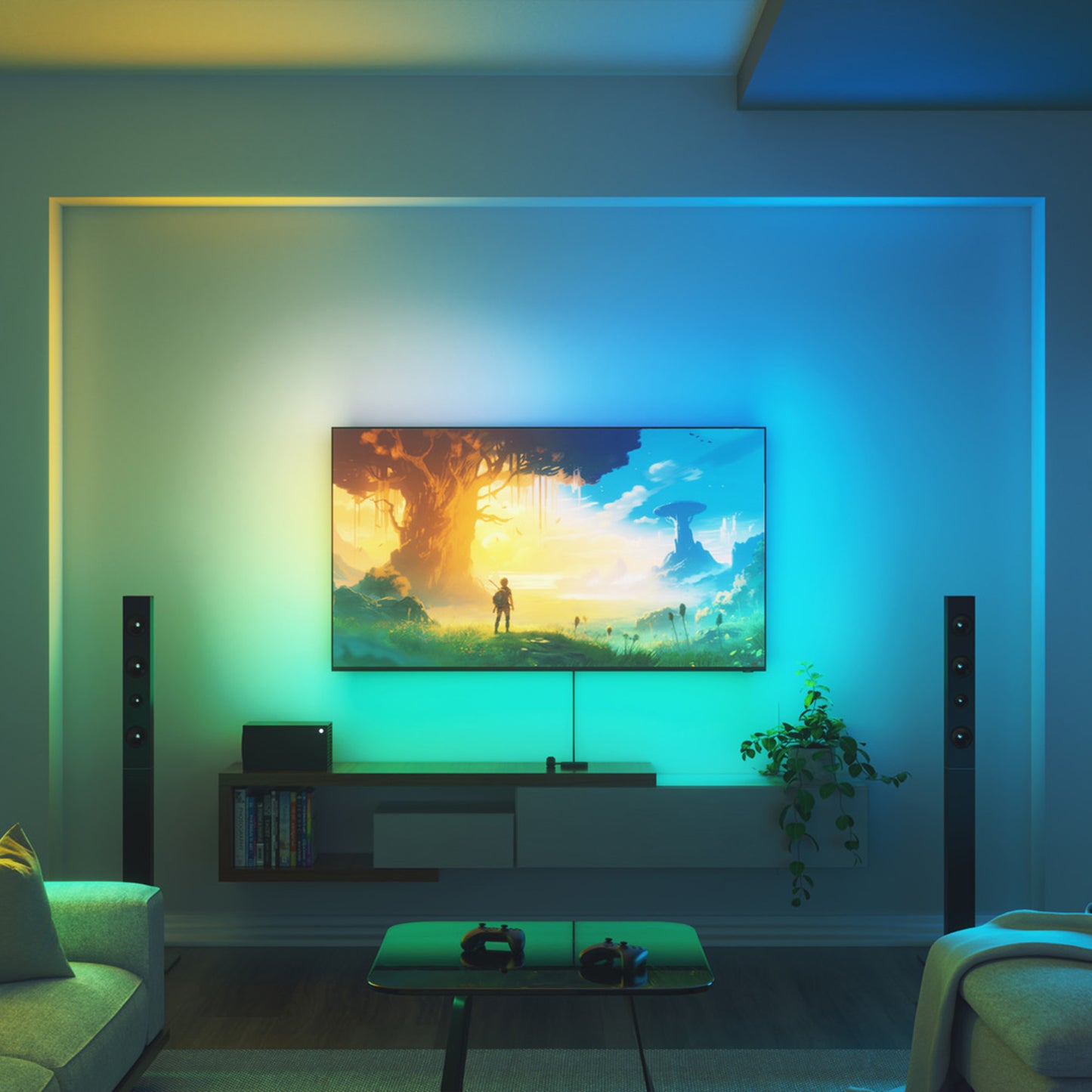

Vivid Screen Mirroring

The colours from your favourite shows, movies, and video games extend out from your screen and into your space for an ultra-immersive entertainment experience.

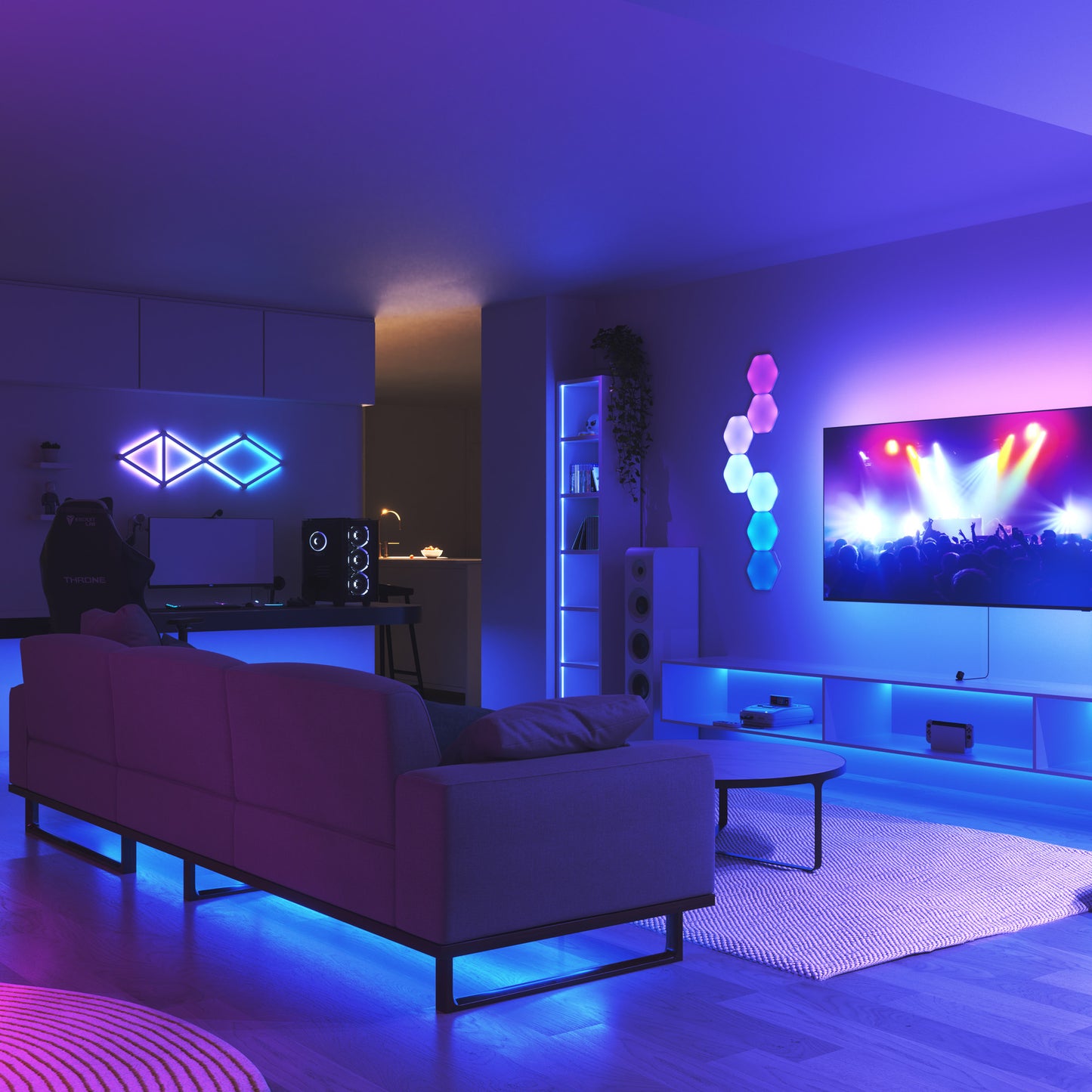

Sync across 50+ Nanoleaf Devices

With Sync+ technology, extend the screen mirror effect across multiple Nanoleaf RGB lighting devices at once to transform your entire space with colour and light.

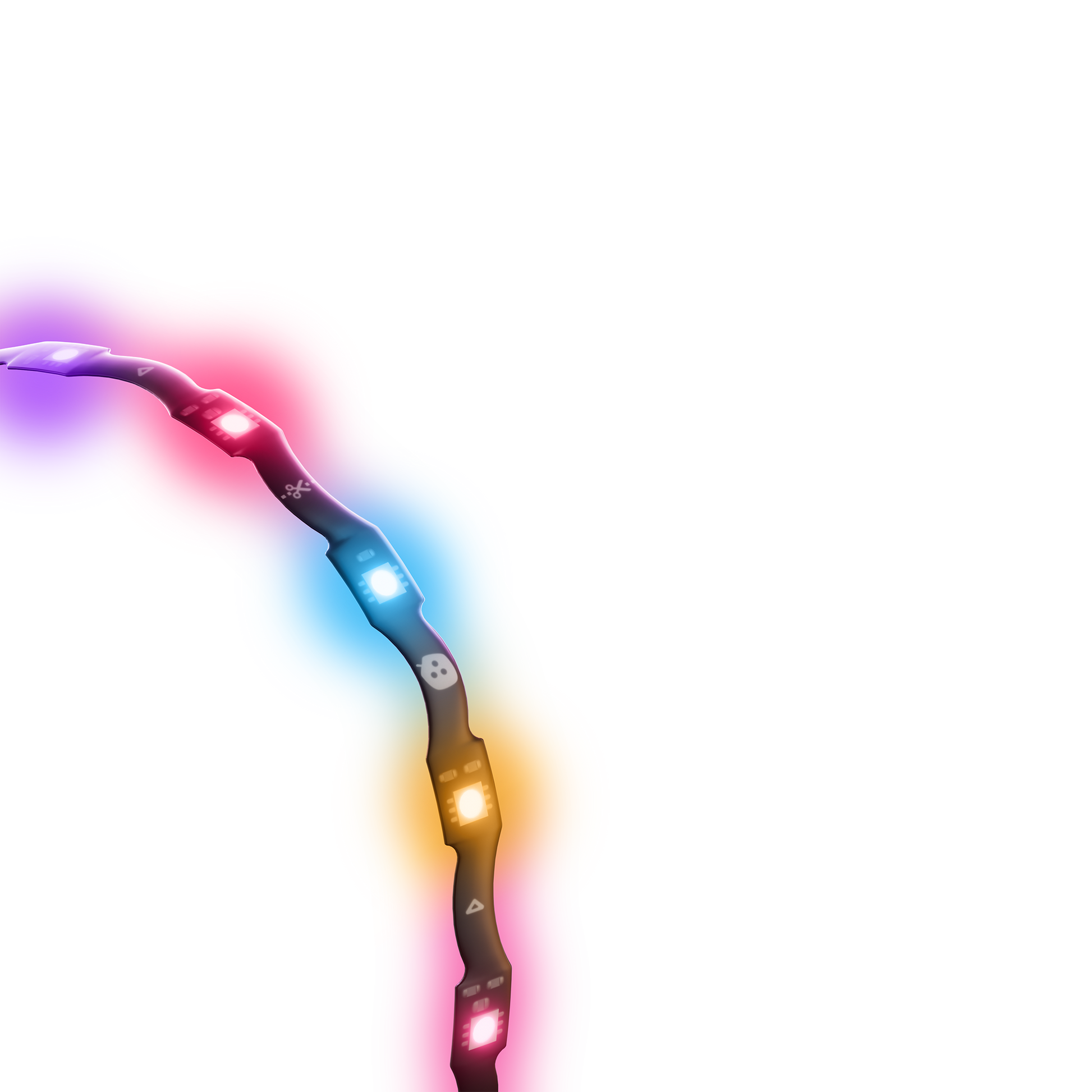

10 Colour Zones Per Metre

Ambient lighting and mirroring effects are enhanced with this high resolution addressable gradient lightstrip, allowing for multiple colours to appear on the lightstrip at once for the most accurate representation of your screen.

Customise to Fit your Screen

Trim the lightstrip to the best length to suit your screen size. Lighting effects automatically remap to the new length.

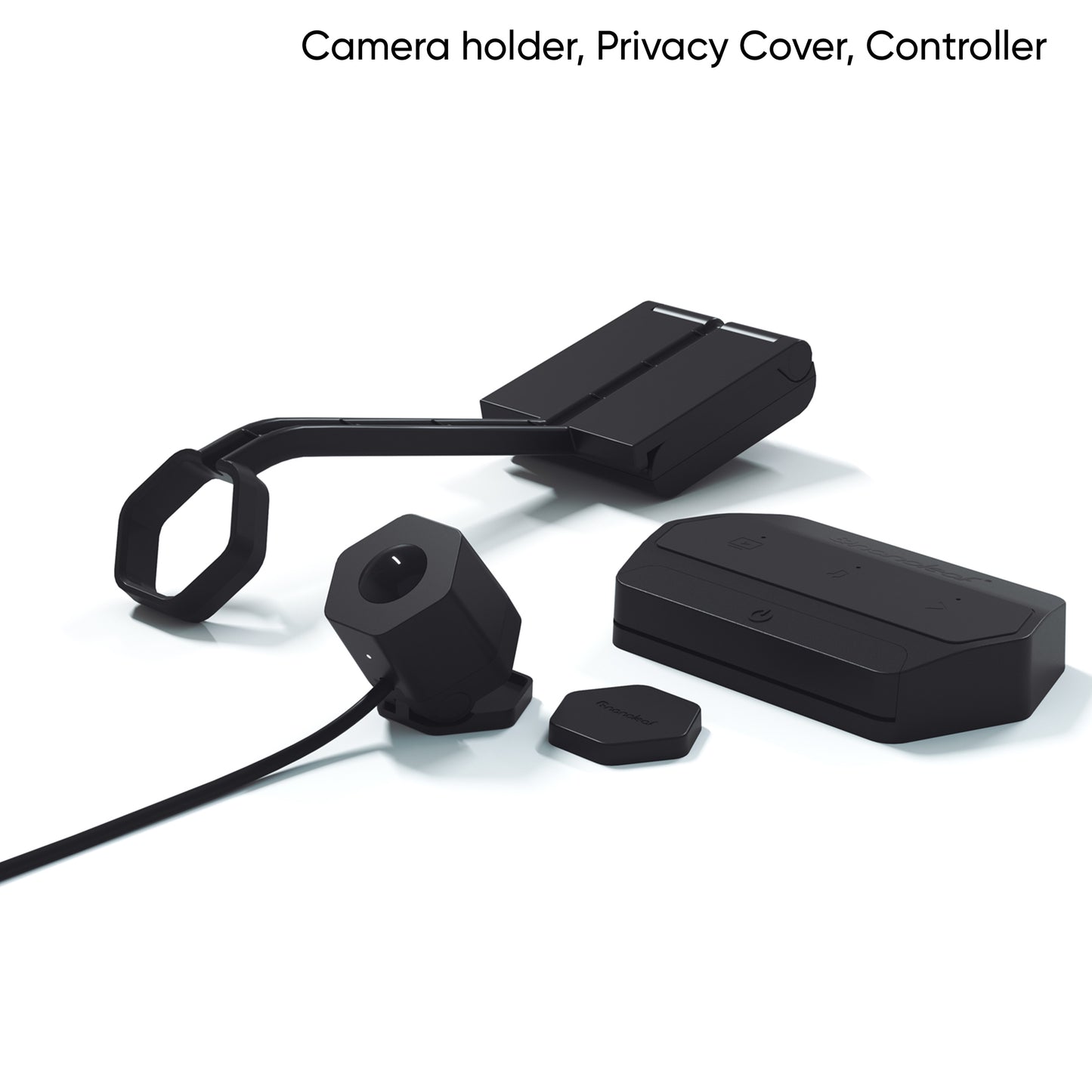

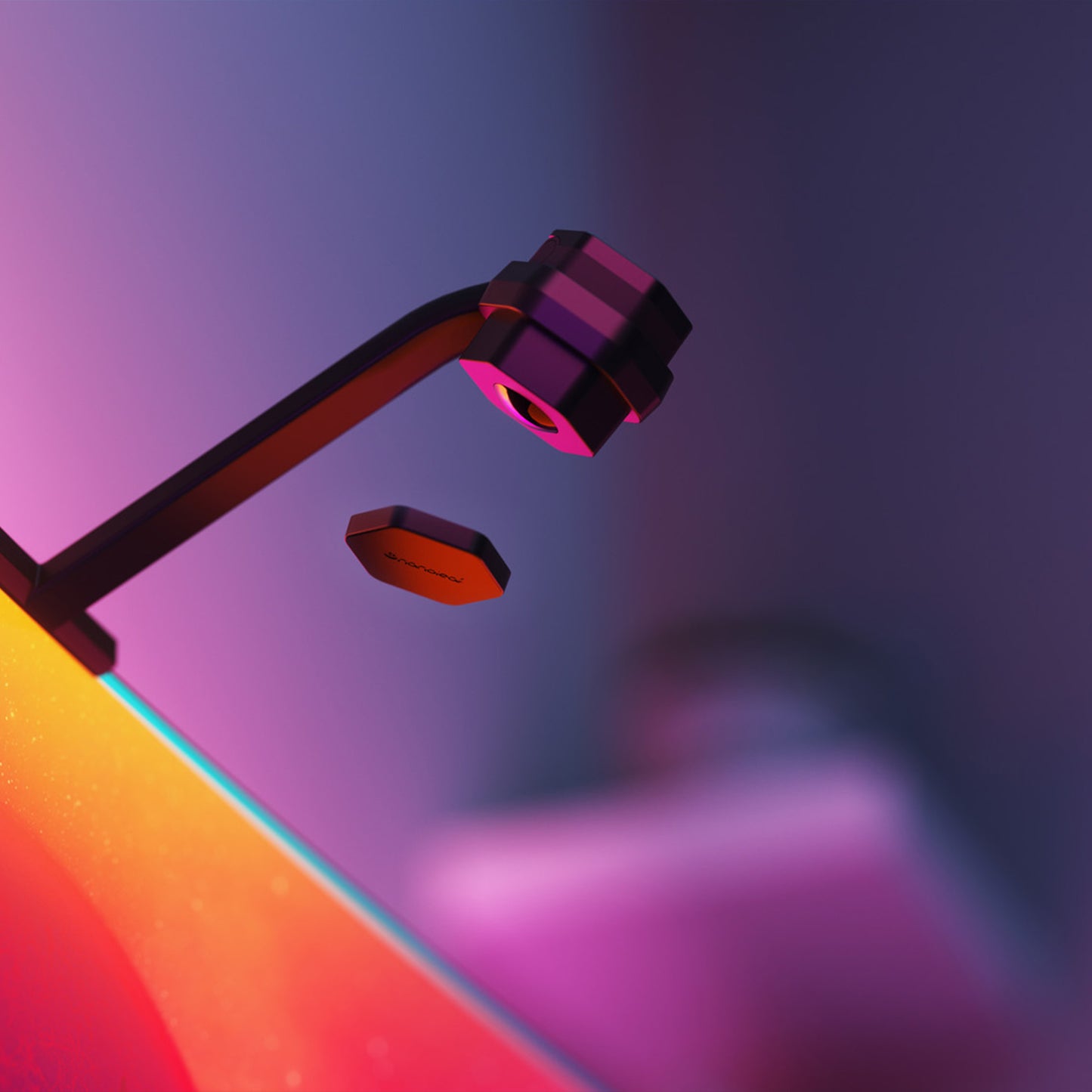

Camera Privacy Cover

Included magnetic cover blocks camera lens when not in use for added peace of mind.

Frequently Asked Questions

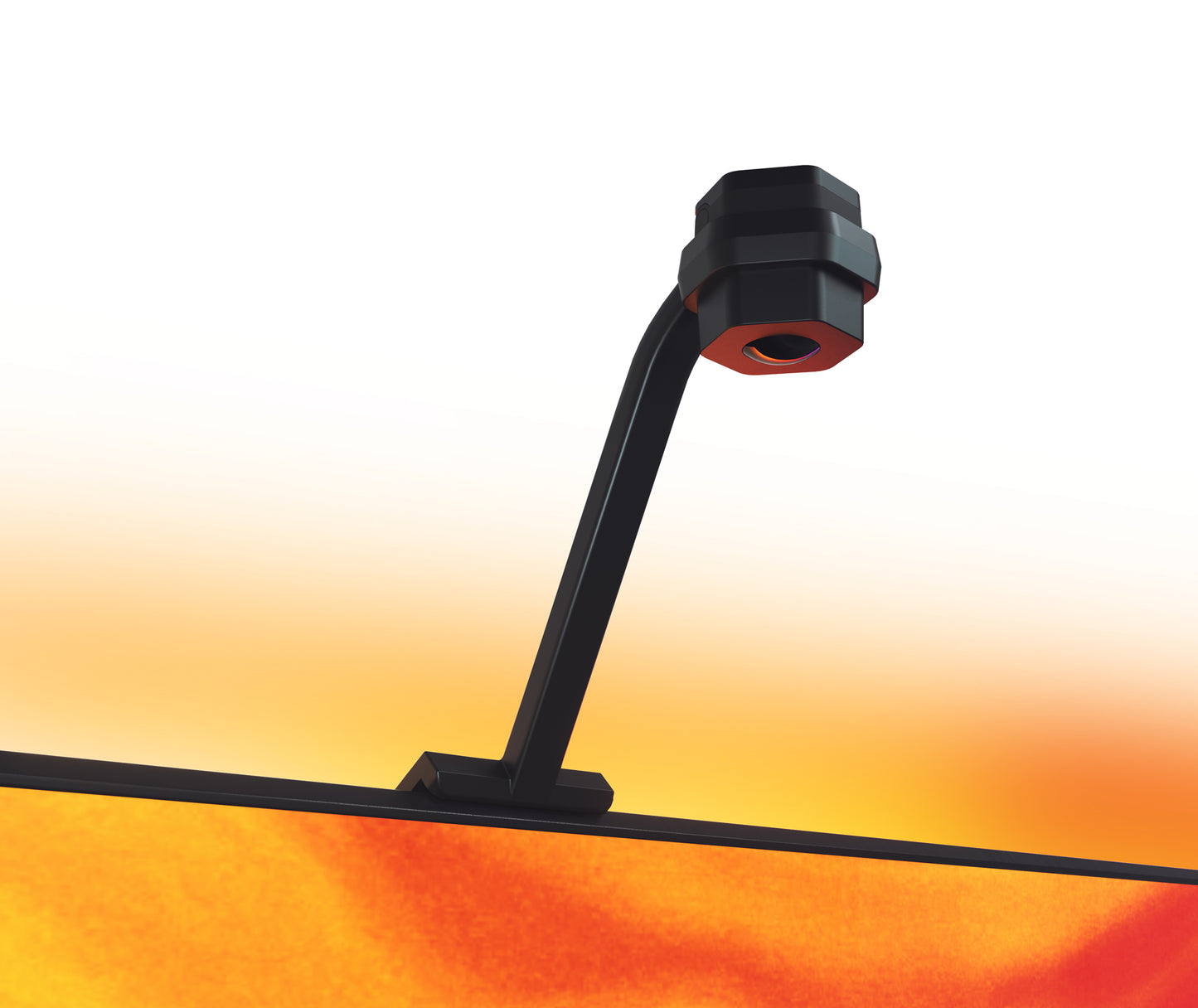

Is there a difference between mounting the camera above or placing it below the screen?

While both placements provide a great screen mirroring experience, sometimes mounting the camera above your screen can slightly improve colour accuracy. If the camera is placed below the screen, make sure it is not in a high traffic area where it is constantly being shifted as it can affect the accuracy of your screen mirror calibration.

Which Scenes react to the colours on the screen?

The 4 Screen Mirror Modes in the Nanoleaf app's "4D" tab all capture the colours on your screen and extend them out to your Nanoleaf RGB lights. You can also enable the "Rhythm" effect for each of these modes as well, to allow them to react to the audio AND visuals from your screen at the same time.

All other Scenes found in the Nanoleaf App or on the 4D Controller such as Colour, Dynamic, and Rhythm Scenes are NON-MIRRORING, as each utilises their own unique colour palettes.

What is Sync+?

Sync+ is a feature that allows you to virtually connect all Nanoleaf RGB lights* in the same space so that you can extend screen mirroring lighting effects across them based on their relative positioning.

You can enable Sync+ within the Nanoleaf App, and choose which of your specific Nanoleaf RGB devices you want to include/exclude from it.

See more detailed instructions on how to set up Sync+ here.

*Nanoleaf RGB lights include Nanoleaf Shapes, Lines, Canvas and Light Panels. Essentials will work with Sync+ with an upcoming firmware upgrade but will also need to be on Thread.

Does the camera record any video footage?

The 4D camera does not record, save, or store anything onto the device, the cloud, your phone, or anywhere else. It is simply used to feed colour data to your lights to create the mirroring effect in real-time. Additionally, the camera is only activated during the initial calibration step, and after that, only when a screen mirroring mode is selected.

For extra peace of mind, a magnetic privacy cover is included with the camera in the kit, so you can cover it when not in use if you wish to do so.

Can I cut the addressable Lightstrip?

Yes, but make sure you cut the loose end of the Lightstrip that is NOT connected to the power cable. Trimming the addressable lightstrip to better suit the dimensions of your TV screen or monitor size will help optimise the screen mirroring experience. Lighting effects will automatically remap to the trimmed length.
